The Role and Importance of Airfield PAPI Lights in Aviation Safety

Aviation safety relies on a multitude of factors, ranging from the design of aircraft to the efficiency of air traffic control systems. Among these factors, visual aids at airfields play a crucial role in ensuring the safe landing and takeoff of aircraft. One such essential visual aid is the Precision Approach Path Indicator (PAPI) lights. This essay explores the significance of airfield PAPI lights, their functionality, installation, and contribution to overall aviation safety.


Understanding PAPI Lights

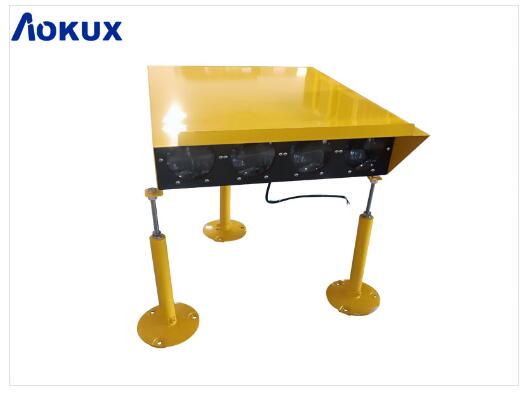

The Precision Approach Path Indicator (PAPI) system is a vital visual aid installed at airfields to assist pilots in maintaining the correct glide path during their final approach to the runway. The system consists of a series of light units arranged horizontally, typically located on the left side of the runway. These light units are calibrated to emit different colors—white and red—that change based on the pilot’s angle of approach relative to the optimal glide path.


Each PAPI system comprises four light units, each set at a specific angle to the horizontal plane. When approaching an airfield, a pilot will see a combination of red and white lights, which indicate whether the aircraft is on the correct glide path. The configurations of the lights provide the following indications:


Two white lights and two red lights: The aircraft is on the correct glide path.
Three white lights and one red light: The aircraft is slightly above the glide path.
Four white lights: The aircraft is significantly above the glide path.
Three red lights and one white light: The aircraft is slightly below the glide path.
Four red lights: The aircraft is significantly below the glide path.
This simple yet effective system allows pilots to make real-time adjustments to their approach, ensuring a safe and accurate landing.


The Functionality of PAPI Lights
PAPI lights function by providing a clear visual representation of an aircraft's position relative to the ideal glide slope. The lights are installed at precise angles to ensure that they accurately reflect the aircraft’s height and angle of descent. Pilots use these visual cues to adjust their approach, ensuring they maintain the correct descent rate and angle to touch down safely on the runway.


PAPI systems are designed to be visible from several miles away, allowing pilots to establish and maintain the correct approach path well before reaching the airfield. This visibility is crucial, especially in poor weather conditions or during night operations when other visual references may be limited.


Installation and Calibration of PAPI Lights
The installation and calibration of PAPI lights are critical to their effectiveness. The system must be positioned accurately relative to the runway and calibrated to ensure the light units provide correct indications. This process involves several key steps:


Site Selection and Preparation: The location for installing the PAPI lights is carefully selected based on the runway layout and approach paths. The site is prepared to ensure a stable foundation for the light units.


Light Unit Alignment: Each light unit is aligned at specific angles relative to the horizontal plane to ensure the correct color indications. This alignment is typically done using specialized equipment and must be precise to within a fraction of a degree.


Calibration and Testing: Once installed, the PAPI system undergoes rigorous calibration and testing to verify its accuracy. This process includes checking the light angles, intensity, and visibility from various distances and angles of approach.


Ongoing Maintenance: Regular maintenance is essential to ensure the PAPI system remains accurate and reliable. This maintenance includes cleaning the light units, checking for alignment issues, and replacing any faulty components.
