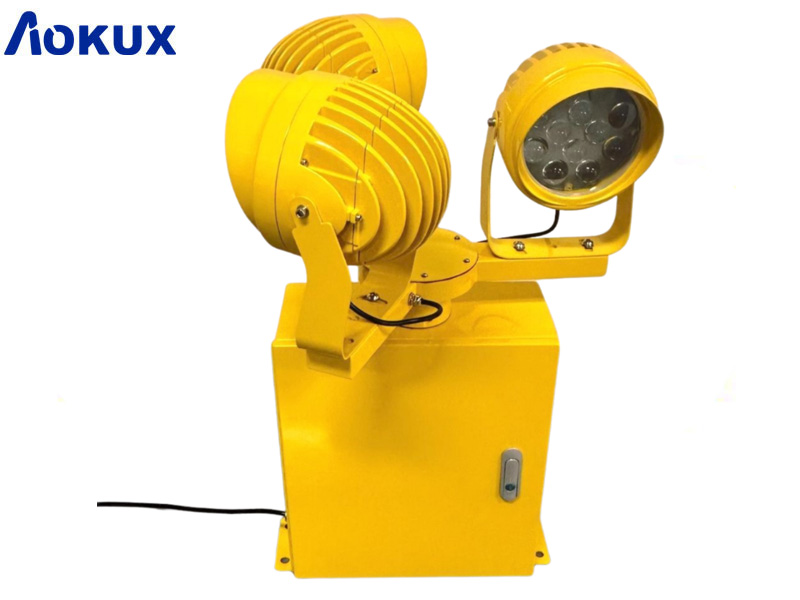

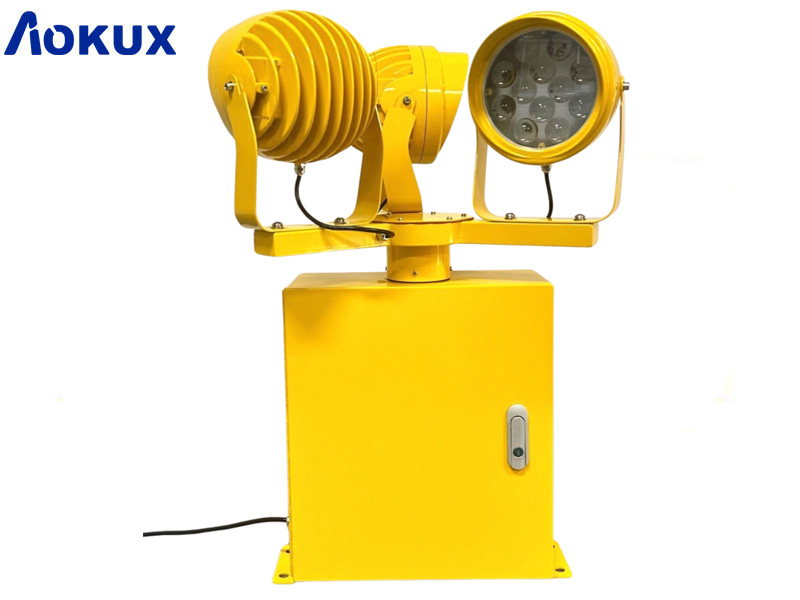

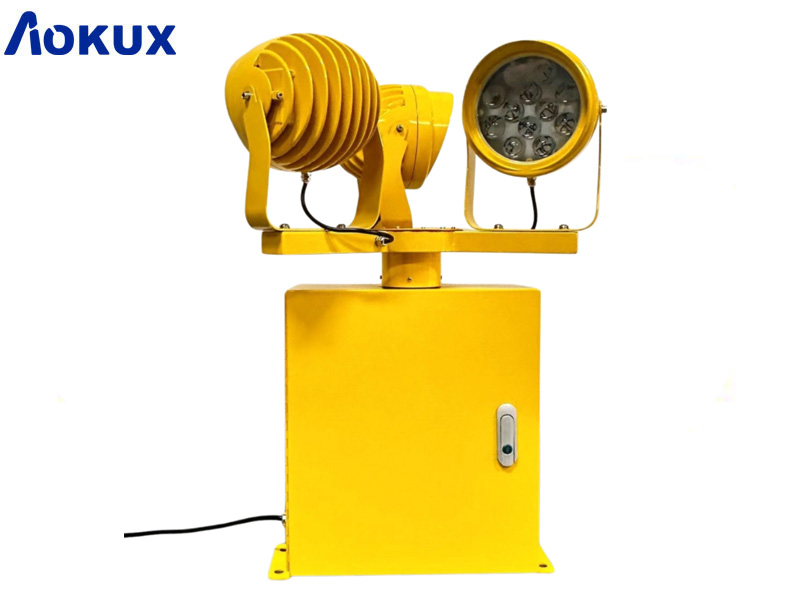

The Aokux AO-HP-R1 is a high-performance rotating beacon light designed for heliports and aviation applications. This robust beacon ensures optimal visibility with its bright, 360-degree rotating light, enhancing safety during low-visibility conditions and nighttime operations. Built to meet stringent aviation standards, the AO-HP-R1 features durable construction, weather-resistant materials, and energy-efficient LED technology for long-lasting performance. Ideal for helipads, airports, and emergency landing sites, it provides reliable signaling for pilots and ground personnel. With easy installation and low maintenance requirements, this rotating beacon is a cost-effective solution for improving airfield safety and compliance with aviation lighting regulations.
Overview:
The Aokux AO-HP-R1 Heliport Rotating Beacon is a high-performance aviation light designed for nighttime operation, serving as an identification and location marker for heliports. In addition to heliport applications, this rotating beacon can also be used as an airport beacon, providing clear visual guidance and marking for airport facilities.
Compliance:
1. ICAO Annex 14 Volume I 5.3.3
2. FAA L-801H AC 150/5345-12 ; FAA L-802H AC 150/5345-12;
Features:
1. Adopt super bright brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Maintenance-free.
4. All moving parts are permanently lubricated.
5. Impedance-protected motor eliminates burnouts.
6. 12RPM rotation, 36 flashes/minute.
7. Weatherproof stainless steel cabinet, powder-coated yellow.
8. Less light pollution, defined light beam has less light “wash”.
9. Three LED lamps: white, aviation green, yellow.
Specification:
|
Product Name |
Aokux AO-HP-R1 heliport rotating beacon aircraft rotating beacon heliport airport beacon light rotating beacon aviation rotating beacon light aviation |
|
Mode NO.: |
AO-HP-R1 |
|
Color: |
White, Green and Yellow 3 colors (other colors available) |
|
Light source:
|
LEDs |
|
Light Intensity(cd): |
>25000cd |
|
Operation mode: |
Steady burning |
|
Installation type: |
Surface mounting |
|
Flashing Characteristics:
|
12RPM(Revolutions Per Minute), 36 flashes per minute
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Each LED head <50W，system power>200W |
|
Circuit Protection: |
Integrated |
|
Helipad Light Material: |
lens and Powder coated stainless steel |
|
Weight(kg): |
25kg |
|
IP Grade: |
IP65 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
/ |

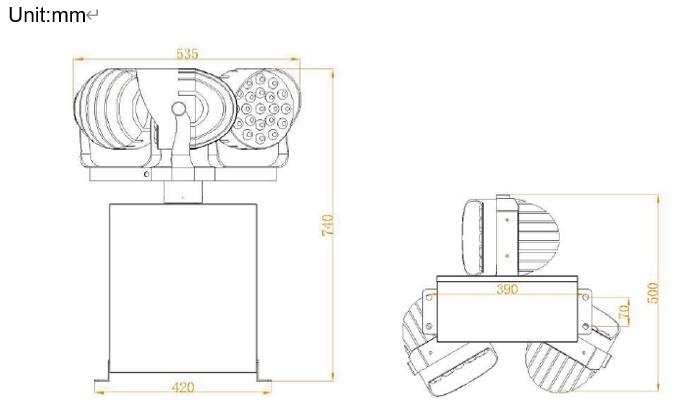

Dimension & Installation:
Applications:
Aokux AO-HP-R1 heliport rotating beacon aircraft rotating beacon heliport airport beacon light rotating beacon aviation rotating beacon light aviation—suitable for both airport and heliport applications—is designed for nighttime operation, serving as a reliable identification and location marker. It is especially ideal for hospitals in densely populated areas, where minimizing light pollution is crucial. Airports with similar requirements for reduced light output also prefer using this type of rotating beacon.
