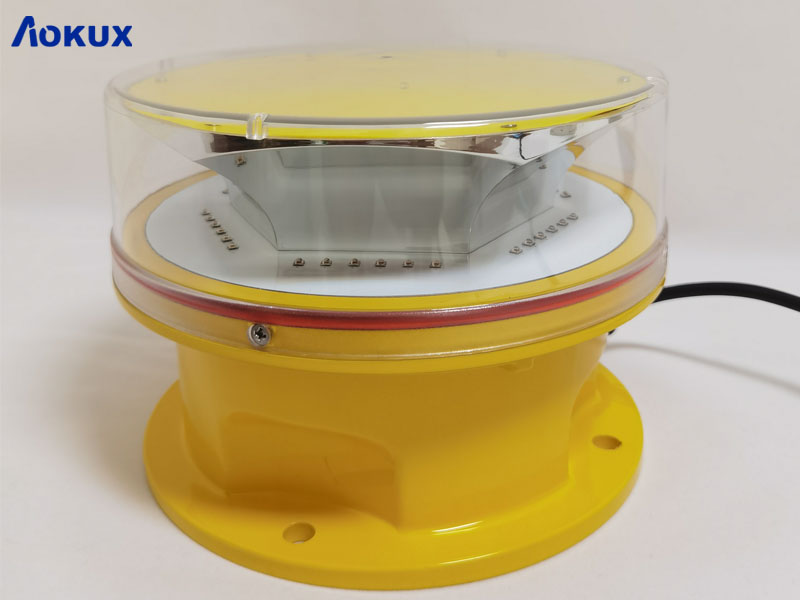

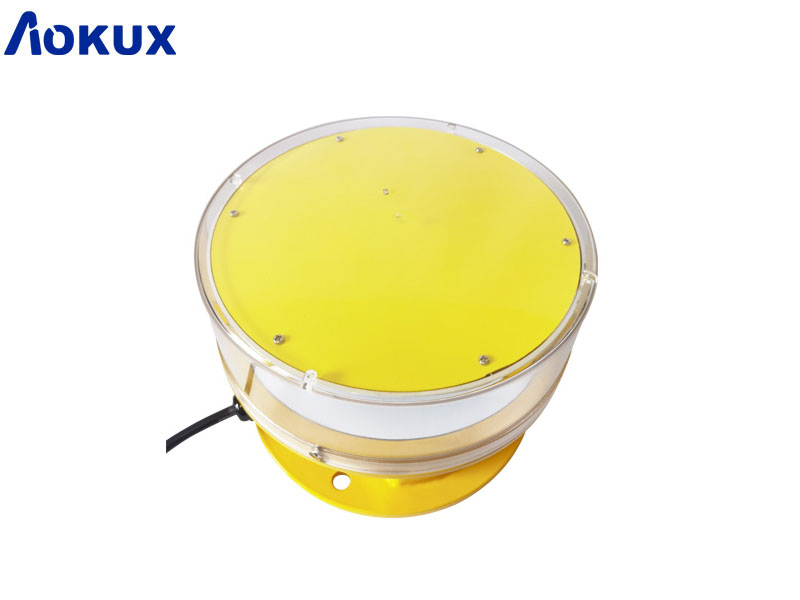

Model AO-MI-C2 Medium-intensity Type C Aviation Obstruction Light emitting fixed red color, designed for marking top of obstacle which height is between 45 to 105 meters.
Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector converging light to very small vertical divergence 3°~7° make it totally compliance with ICAO standard.
Compliance:
International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Unique design and UV protected polycarbonate for the obstruction light protect cover.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. Special valve installed under the base to make sure the air could go through but water is avoid, so that the whole FAA lights type A medium intensity obstacle light aircraft warning lights ICAO aviation light for towers temperature won’t be high.
7. Built-in photocell for daytime and night operation.
8. Surge and lightning protection.
9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.
Specification:
|
Product Name |
Type C Medium Intensity Obstruction Light |
|
Mode NO.: |
AO-MI-C2 |
|
Color: |
Red |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
2,000cd±25% (Night) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
3-7 degree |
|
Flashing Characteristics:
|
Fixed light
|
|
Operation Mode: |
Night operation |
|
Input: |
100-240VAC 50-60Hz,12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<12W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, ABS reflector and Powder coated die-casting aluminum base. |
|
Weight(kg): |
2.5kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |
Dimension & Installation:
Applications:

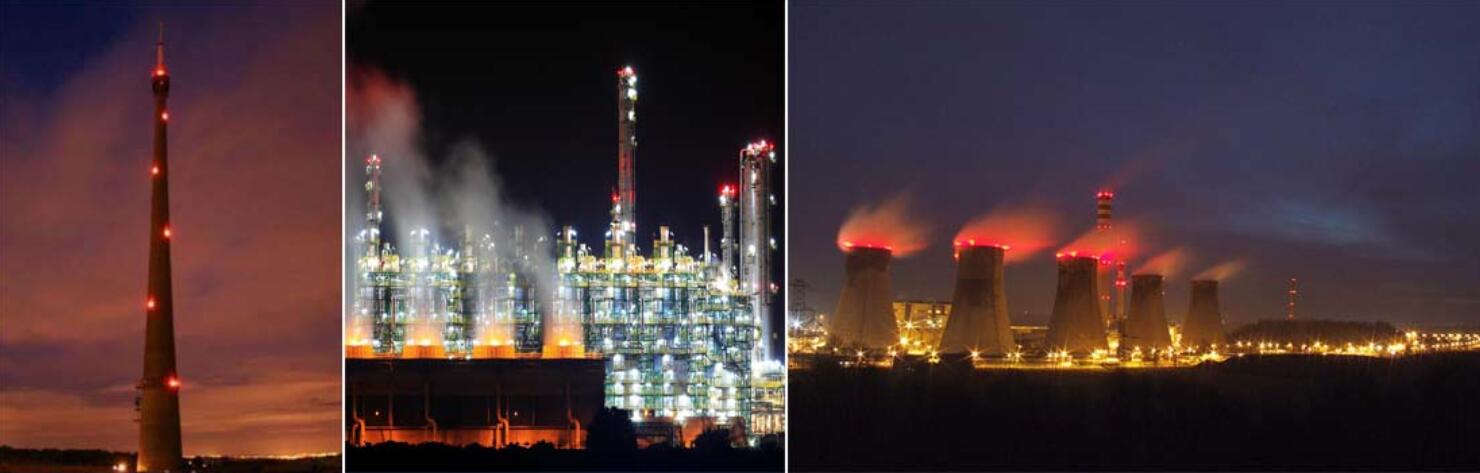

AO-MI-C2 medium-intensity obstruction light red light could be used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is 45-105 meter, and low intensity lights installed on lower place.
2. Medium-intensity type B obstruction light also use with Medium-intensity type A and high-intensity obstruction light when obstacle is more than 105m.
