Overview:

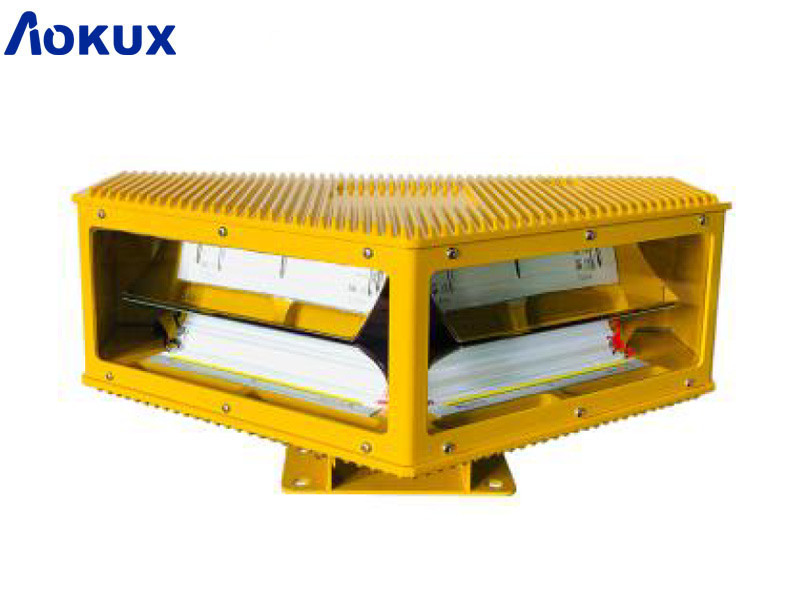

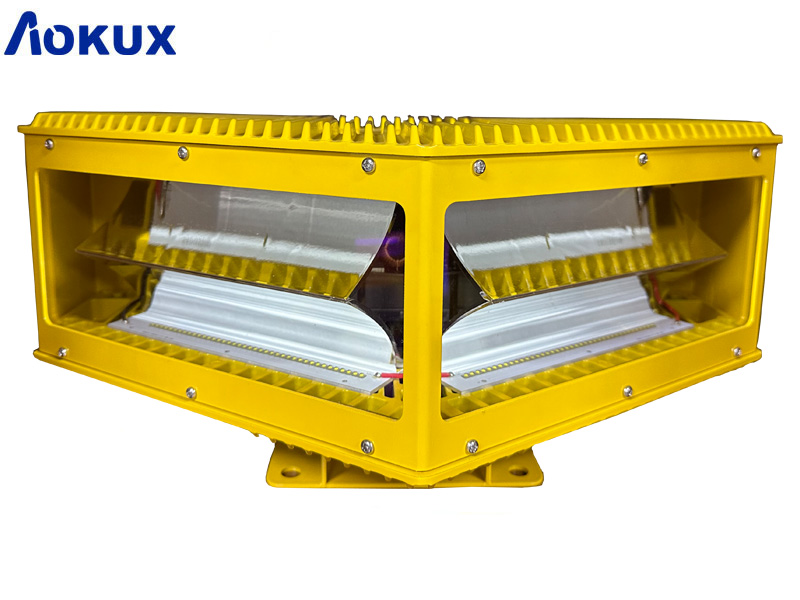

High intensity obstacle lights chimney aviation warning lights AO-HI-A5 adopt special corner design 120°, this mode lights are used to mark buildings that may cause damage to aircraft. our mode high-intensity obstruction lights illuminate white light 24 hours day and time, Combines with advanced LED, optical and system control technology to meet the most demanding applications. Suitable for obstacles with a height of 150 meters. Suitable for high salinity corrosion area.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-856.
Features:
1. Light source using LED technology, LED PCB two-layer design, better heat dissipation,lower energy consumption, high efficiency.
2. High-precision beam optical reflector, two-layer design, can effectively control the beam within the required range, and greatly reduce power consumption.

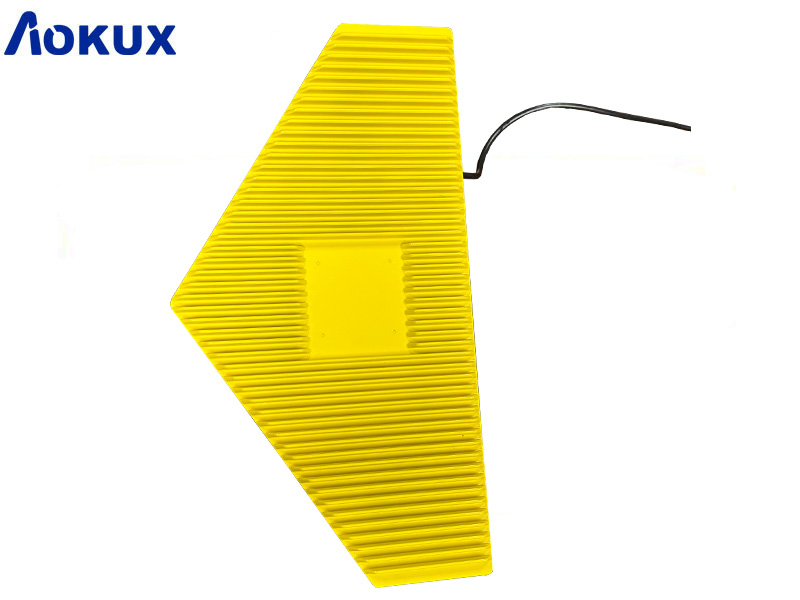

3. Aluminum alloy die-cast shell, yellow electrostatic powder coating surface, anti-vibration, corrosion-resistant.
4. Waterproof silicone seal structure.
5. Professional EMC design, anti-electromagnetic interference.
6. Special corner design 120° in horizontal angle, 3pcs AO-HI-A5 make up 360°, Less quantity and lower cost.
7. Built-in photocell for daytime, twilight and night operation.
8. Surge and lightning protection.
9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.
Specification:
Product Name |
High intensity obstacle lights chimney aviation warning lights AO-HI-A5 |
Mode NO.: |
AO-HI-A5 |
Color: |
White |
Light source:
|
CREE LED |
Light Intensity(cd): |
200,000cd±25%(Daytime), 20,000cd±25%(Twilight) , 2,000cd±25 (Night) |
Horizontal Output(degrees): |
Special corner design 120° in horizontal angle |
Vertical Divergence(degrees): |
5 degree |
Flashing Characteristics:
|
40-60FPM
|
Operation Mode: |
24 hours operation, 3 different modes |
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
Power Consumption(W): |
Average Power consumption<80W |
Circuit Protection: |
Integrated |
Obstruction Light Material: |
Glass and die-casting aluminum casing. |
Weight(kg): |
9kg |
IP Grade: |
IP66 |
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
Optional functions(Separate charges): |
1. GPS Sync Flashing, 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

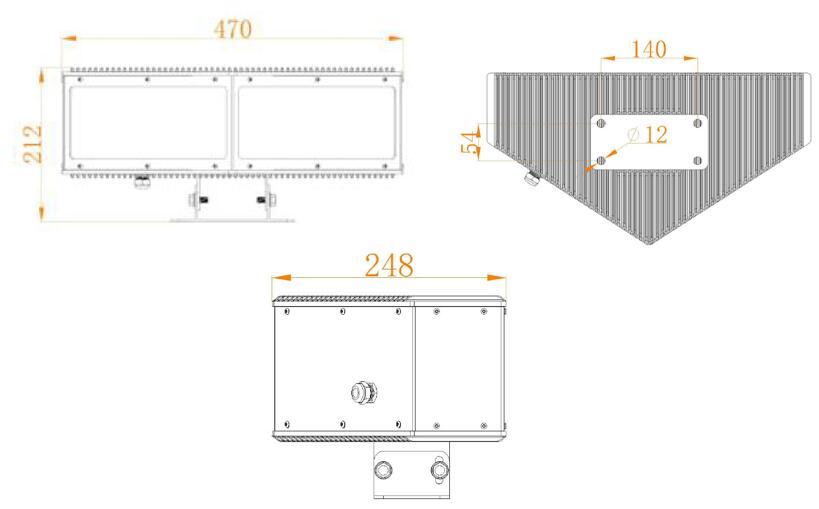

Dimension & Installation:
Applications:

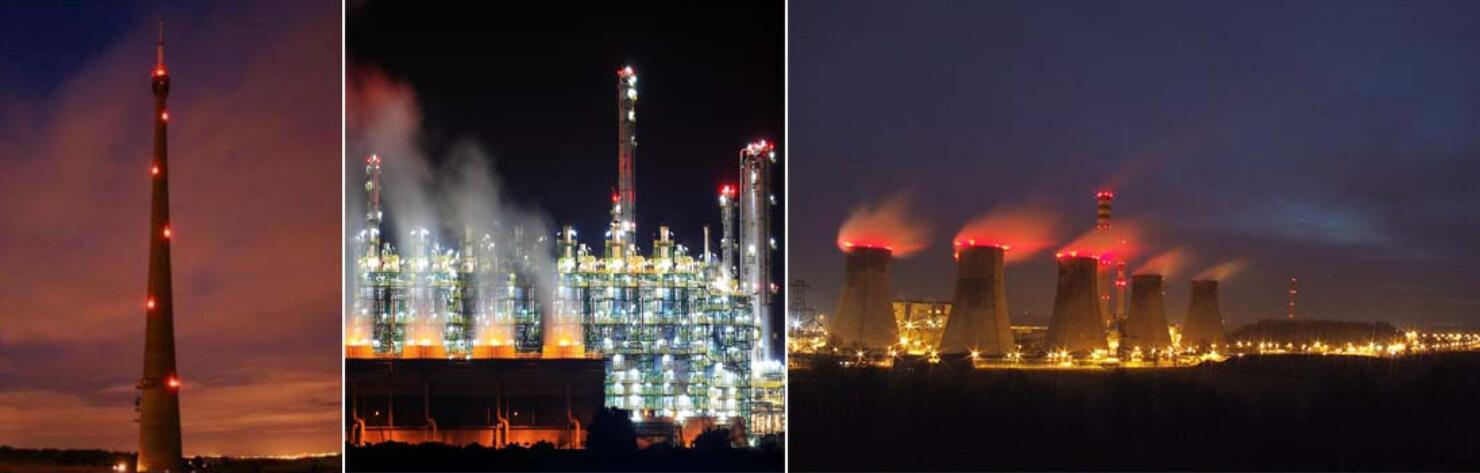

High intensity obstacle lights chimney aviation warning lights AO-HI-A5 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is more than 150m, and it needs work with medium intensity obstruction lights, low intensity obstacle lights installed on the lower place.
