The design and placement of helicopter pad lights are in accordance with aviation standards and regulations to ensure visibility and safety for helicopter operations. These lights are typically equipped with high-intensity bulbs or energy-efficient LED technology, providing bright and uniform illumination across the helipad area. The consistent lighting helps pilots accurately gauge the landing zone and execute maneuvers with confidence.
Helipad lighting systems may also include perimeter lights to outline the boundaries of the helipad and floodlights to provide additional lighting for the helipad area. Together, these lights contribute to creating a well-lit and clearly defined operational space for helicopters, minimizing hazards and ensuring smooth operations.
Helicopter pad lights are commonly used in a variety of settings, including hospital helipads, offshore oil platforms, search and rescue operations, military bases, commercial heliports, and private helipads. Their role in enhancing visibility, guiding pilots, and meeting strict aviation standards makes them indispensable for safe and efficient helicopter operations in diverse environments. Overall, helicopter pad lights are crucial elements of heliport lighting systems that help facilitate safe helicopter landings and takeoffs.
Overview:

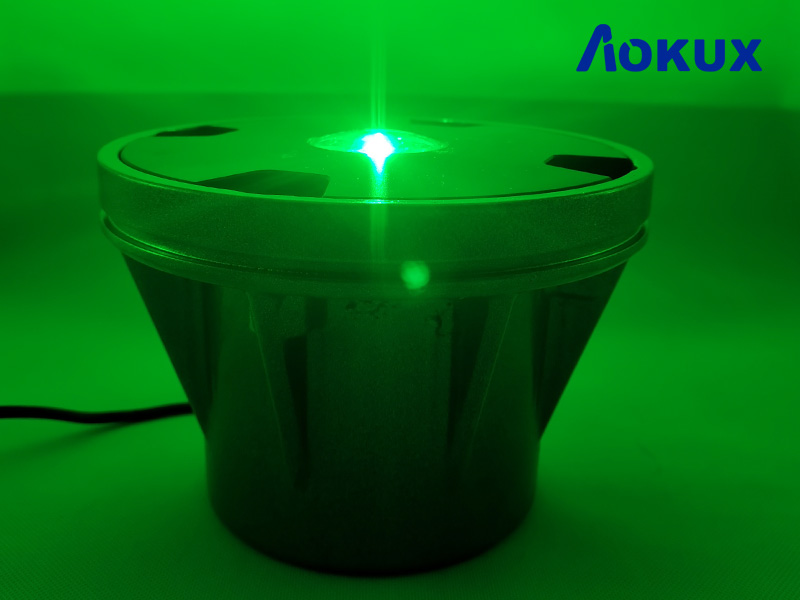

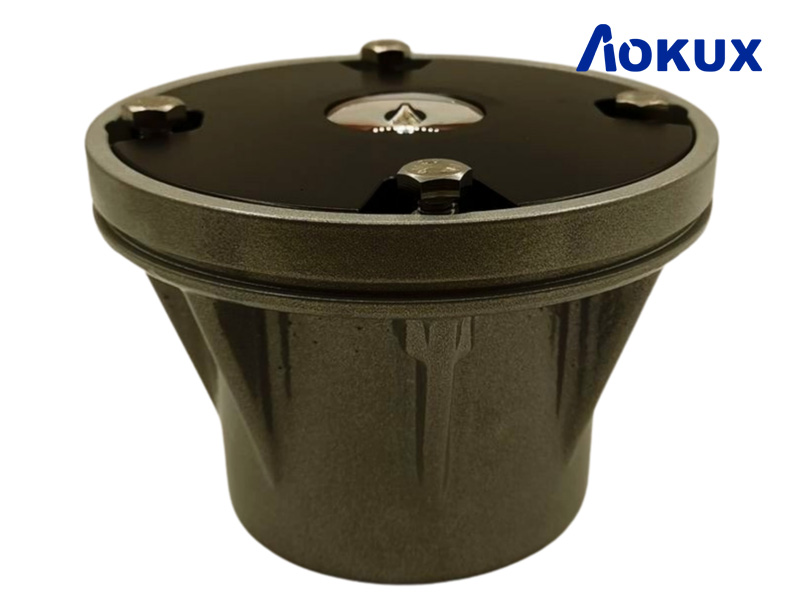

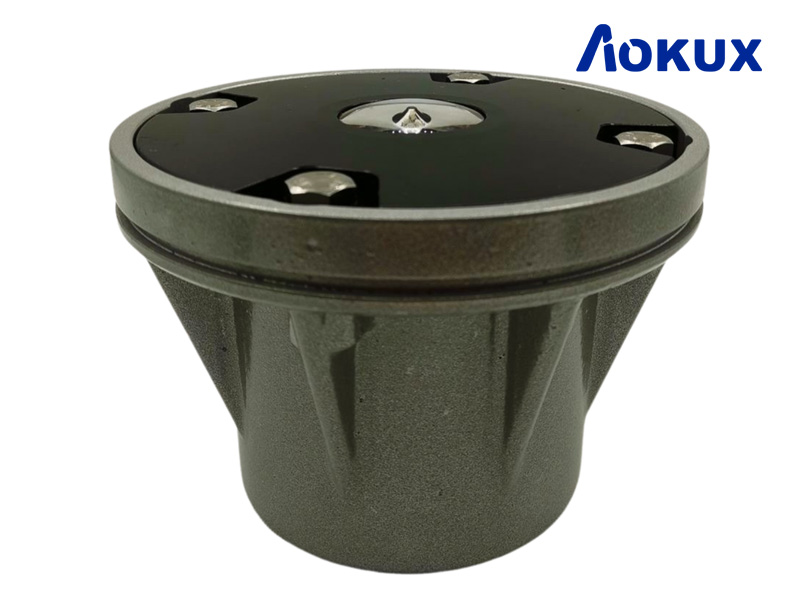

Helicopter pad lights helipad light heliport lighting helipad lighting system AO-HP-IL1 is one kind of inset heliport lighting products, it has many kinds of applications, such as helideck perimeter light, Heliport TLOF, FATO Light etc. It could be used as aiming point light, perimeter light of FATO(Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway light, runway light, flight path Lighting, etc. The emitting color can be yellow, green, white. This inset helipad light can bear the striking from aircraft or maintenance vehicles.
Compliance:
1. ICAO Annex 14 Volume II Heliports 5.3.
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Pressure resistance lens allowed the vehicles go through on light..
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. Die-casting aluminum covered by hard anodizing layer have good corrosion protection and load bearing.
7. IP68 waterproof ensure light work fine underground.
Specification:
|
Product Name |
Helicopter pad lights helipad light heliport lighting helipad lighting system AO-HP-IL1 |
|
Mode NO.: |
AO-HP-IL1 |
|
Color: |
Green/yellow/white etc |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
>100cd |
|
Horizontal Output(degrees): |
360 degree |
|
Installation type: |
Concealed installation (inset) |
|
Flashing Characteristics:
|
Fixed light steady burning
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption 7W |
|
Circuit Protection: |
Integrated |
|
Helipad Light Material: |
lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
4.5kg |
|
IP Grade: |
IP68 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. VHF pilot to ground remote control 2. Infra-Red (IR) light for NVG 3. Mounting bracket |

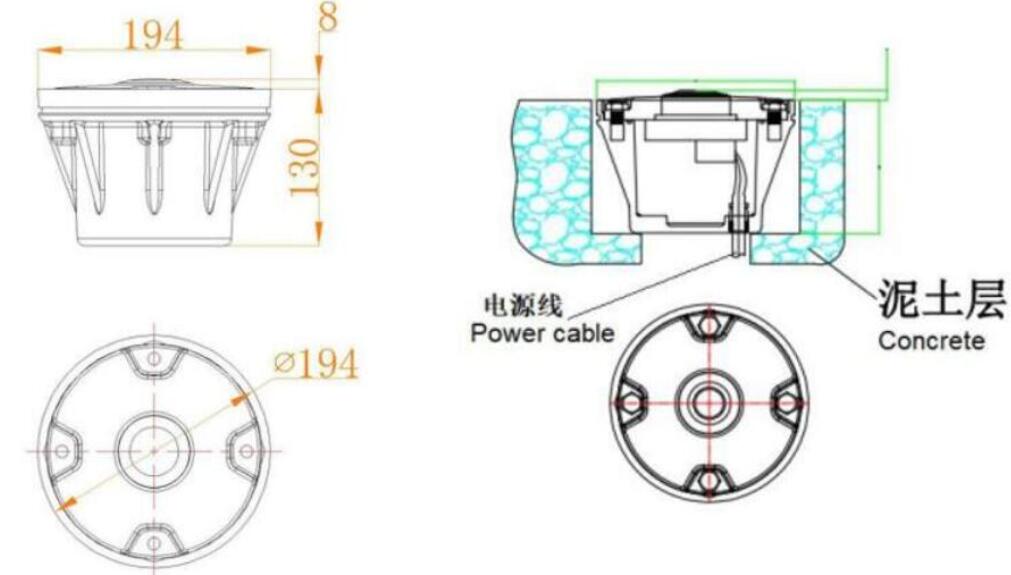

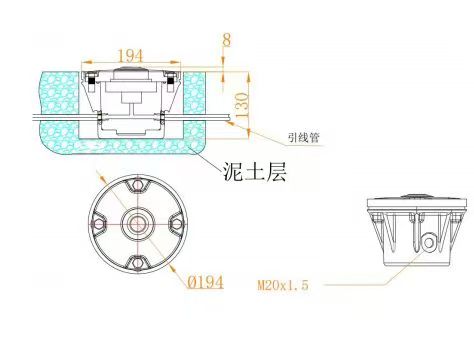

Dimension & Installation:

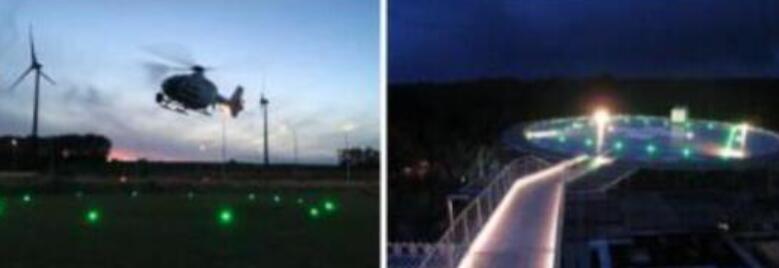

Applications:
Helicopter pad lights helipad light heliport lighting helipad lighting system AO-HP-IL1 has many applications for heliport lighting, sucha as Helipad FATO light, heliport TLOF areas Heliport FATO areas, Helipad Runway, Helipad taxiway, Aiming point light, helideck perimeter light etc.
Helicopter pad lights, also known as helipad lights, are commonly used in a variety of aviation and helicopter landing scenarios to ensure safe and efficient operations. These lights are strategically placed on helipads to provide illumination for helicopter landing and takeoff areas, especially during low-light conditions or night-time operations.
Helicopter pad lights are essential in hospital helipads, where they guide medical helicopters for emergency patient transport. They are also crucial in offshore oil platforms, enabling safe helicopter landings for crew transfers. In search and rescue operations, helipad lights play a vital role in guiding helicopters to the designated landing zones for swift response.
Moreover, military bases use helipad lights to facilitate helicopter operations for training exercises and mission deployments. Commercial heliports rely on these lights to ensure safe and efficient passenger transfers. Private helipads at estates or corporate buildings utilize helipad lights for helicopter transportation needs.
Helicopter pad lights are versatile and indispensable in various settings, contributing to the overall safety and functionality of helicopter operations. Their role in enhancing visibility, guiding pilots, and meeting aviation standards makes them essential components of helipad lighting systems in diverse operational environments.
