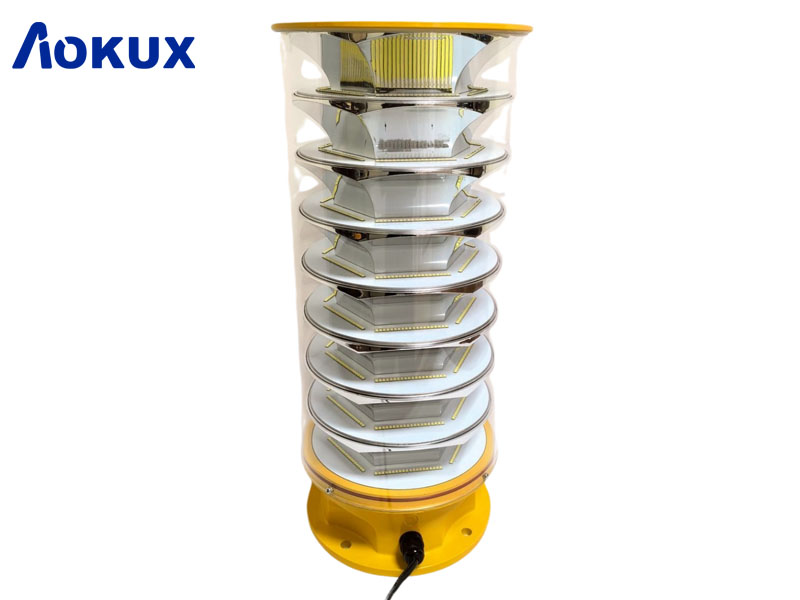

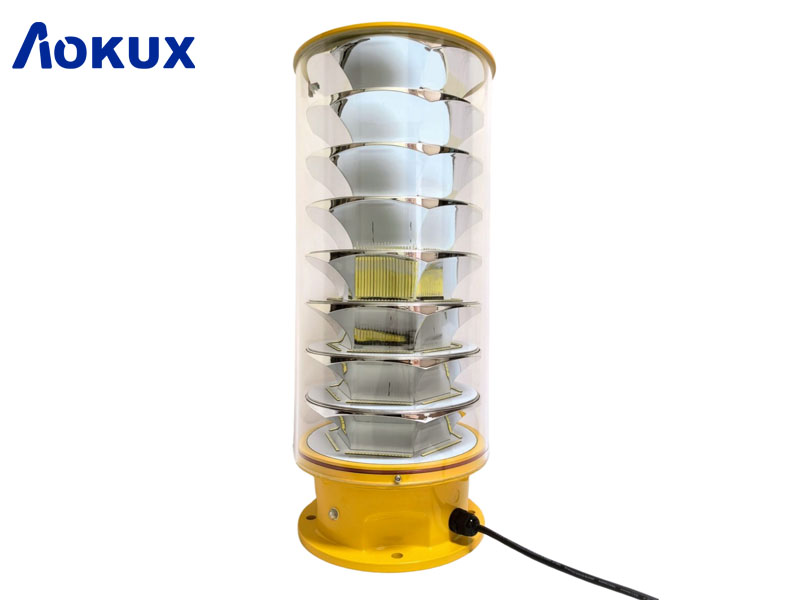

High intensity obstruction lights are warning devices used in aviation to indicate obstacles that could pose a threat to aircraft operations. These Aircraft Warning Lights emit bright flashing signals that can be seen from far distances, making them essential for ensuring the safety of pilots and passengers. This high intensity aviation obstruction light illuminates white light 24 hours day and time. According to ICAO, FAA regulations, lighting of objects with a height 150 m or more above ground level, and this Aircraft Warning Light needs to keep flahsing 24 hours at 40-60fpm.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-856.
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Unique design and UV protected polycarbonate for the obstruction light protect cover.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.

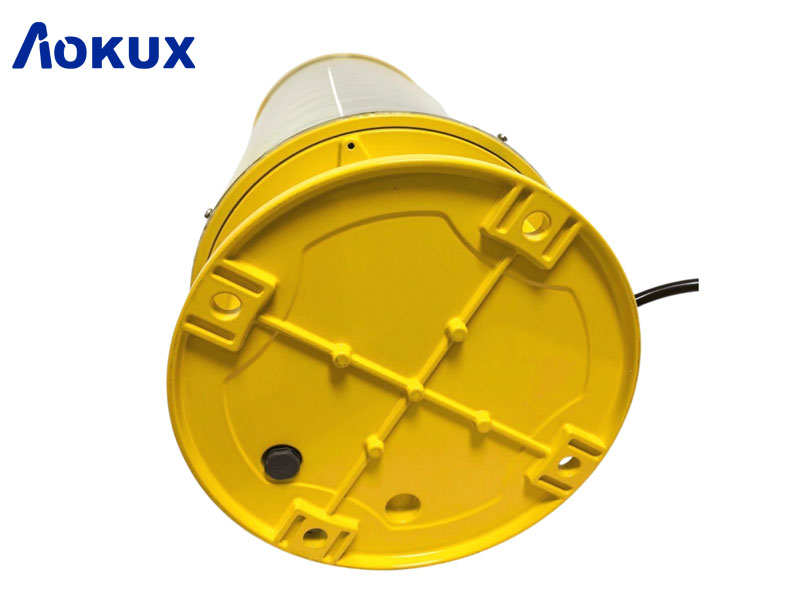

5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. Special valve installed under the base to make sure the air could go through but water is avoid, so that the whole 360 degree high intensity aviation obstruction light temperature won’t be high.
7. Built-in photocell for daytime, twilight and night operation.
8. Surge and lightning protection.
9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.
Specification:
Product Name |
360 degree high intensity aviation obstruction light |
Mode NO.: |
AO-HI-A1 |
Color: |
White |
Light source:
|
CREE LED |
Light Intensity(cd): |
Type A: 200,000cd±25%(Daytime), 20,000cd±25%(Twilight) , 2,000cd±25 (Night) |
Horizontal Output(degrees): |
360 degree |
Vertical Divergence(degrees): |
3-7 degree |
Flashing Characteristics:
|
40-60FPM
|
Operation Mode: |
24 hours operation, 3 different modes |
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
Power Consumption(W): |
Average Power consumption<80W |
Circuit Protection: |
Integrated |
Obstruction Light Material: |
PC cover, ABS reflector and Powder coated die-casting aluminum base. |
Weight(kg): |
8.2kg |
IP Grade: |
IP66 |
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
Optional functions(Separate charges): |
1. GPS Sync Flashing, 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

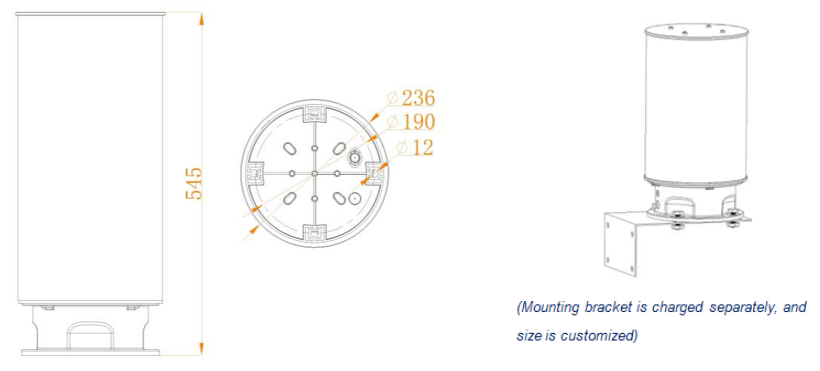

Dimension & Installation:
Applications:
AO-HI-A1 Aircraft Warning Lights High Intensity Obstruction Lights are typically installed on tall structures, such as transmission towers, wind turbines, chimneys, smokestacks, and other high-rise buildings. They warn pilots about the presence of these structures to avoid collisions, especially during low visibility conditions like fog, mist, or darkness. when the obstacle height is more than 150m, and it needs work with medium intensity obstruction lights, low intensity obstacle lights installed on the lower place. Moreover, Aircraft Warning Lights High Intensity Obstruction Lights are also used to signal the location of helipads, airports, and other facilities that require not only visual guidance but also compliance with safety regulations and standards set by aviation authorities.
