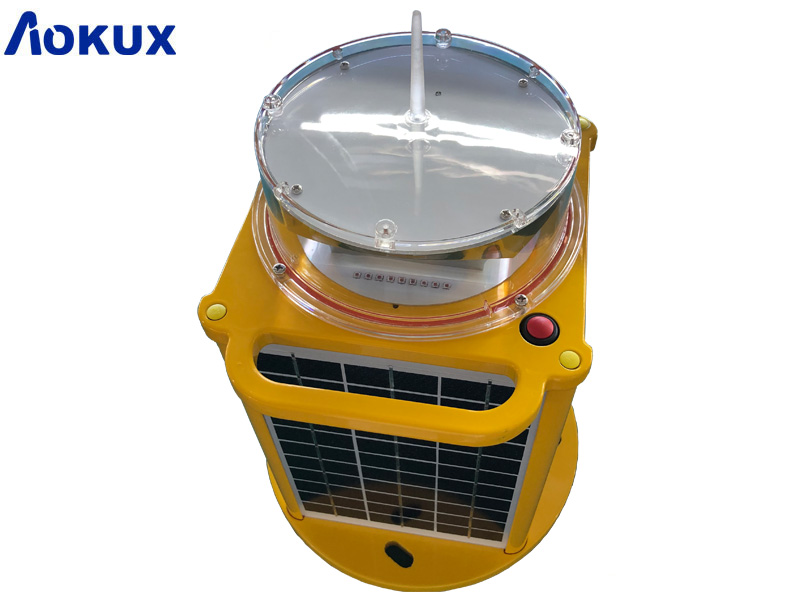

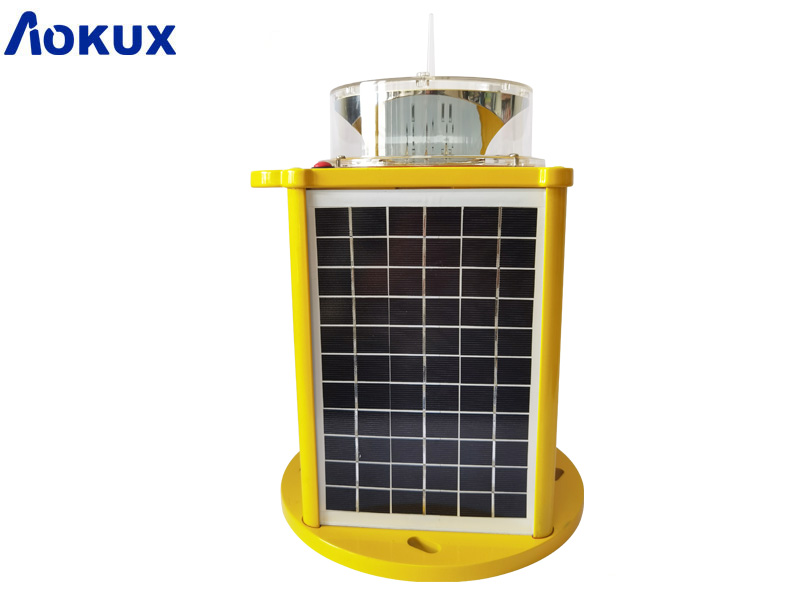

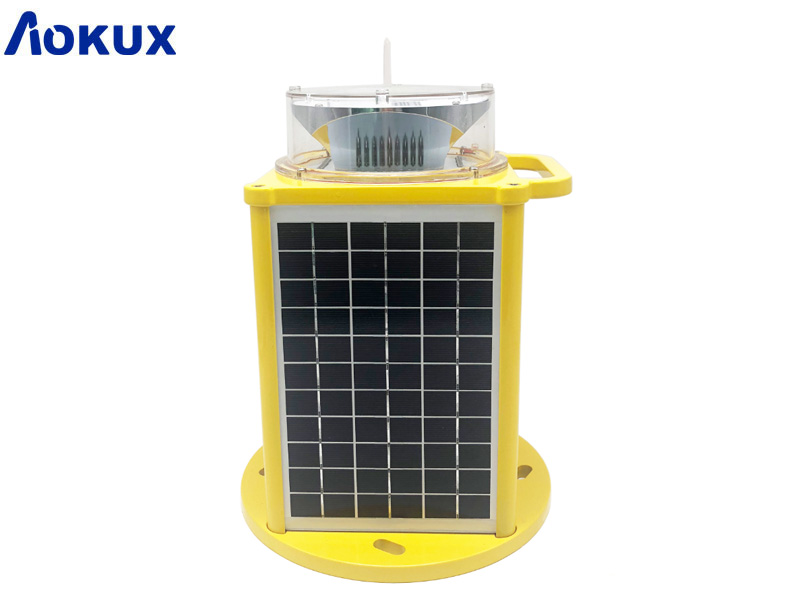

Model AO-SMI-B1 Medium intensity Type B solar aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters for aircraft warning, airplane warning, aviation warning . Ultra high intensity LED is used as light source which make performance better. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles. GPS device is optional for AO-SMI-B1, it make different lights flash synchronously.
All our aircraft warning light, tower aviation light, aviation warning light, airplane warning light and solar aviation lights have a good price and high quality.
Compliance:
1. Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition July 2016, table 6.3 Medium-intensity Type B Obstacle Light.
2. FAA L-864.
Features for aircraft warning light:
1. Ultra high intensity LED light source saving power, consumption and maintenance.
2. UV & vibrations protected polycarbonate lens for converging light.
3. Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation.
4. 4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
5. Battery: VRLA (Valve-Regulated Lead Acid Battery).
6. Solar panel as photocell for day & night working mode (dusk to dawn mode).
7. Interface ON/OFF button is more reliable and easy for local control.
Specification for tower aviation light:
Details for aviation warning light, airplane warning light:
Application of solar aviation lights:
1. Solar medium-intensity solar aviation obstruction light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and mostly come with the low intensity lights which are installed at lower place. It is a great aircraft warning light.
Company Overview：
Aokux is a professional manufacturer and exporter for green navigational aids products in China, such as aviation obstruction light, marine antern, helipad Lights etc. We have more than 10 years production-manufacturing experience, Aokux Strictly follow ISO 9001 standard, and most of our products meet ICAO and FAA standard. Aokux products have been exported over 65 countries and areas all over the world, and total annual revenue more than US$25 million.
Annual Production Capacity：
Delivery Time：
Small order mostly shipped by express, such as DHL, Fedex etc, delivery time 1-7 days.
Standard order delivery time 7-15 days. for more info, Please contact us.
Contact Us：
If you interest in our aircraft warning light, tower aviation light, aviation warning light, airplane warning light and
solar aviation lights, please feel free to contact us. here is the details contact info.
Tel: +86 18321162168
Email: info@aokux.com
Skype: xiangjia280
Wechat: Lighting8876
Whatsapp:+8618321162168
Web: www.aokux.com
Add: 6F 30# Hangzhou Bay New Economic Industrial Park Pinghu, 314201 Zhejiang, China
All our aircraft warning light, tower aviation light, aviation warning light, airplane warning light and solar aviation lights have a good price and high quality.
Compliance:
1. Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition July 2016, table 6.3 Medium-intensity Type B Obstacle Light.
2. FAA L-864.
Features for aircraft warning light:
1. Ultra high intensity LED light source saving power, consumption and maintenance.
2. UV & vibrations protected polycarbonate lens for converging light.
3. Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation.
4. 4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
5. Battery: VRLA (Valve-Regulated Lead Acid Battery).
6. Solar panel as photocell for day & night working mode (dusk to dawn mode).
7. Interface ON/OFF button is more reliable and easy for local control.
Specification for tower aviation light:
| Model NO | Light Source | Light color | Light Intensity | Flash Characteristics | Beam Angle | IP Grade |
| AO-SMI-B1 | LED | Red/other |
2000cd±25%
Type B
|
20-60fpm |
Horizontal:
360°
Vertical: 3°
|
IP67 |
| Input Vol | Power | Operation Mode | Main materials | Weight | Product Life | Wind Resistance |
| Solar powered | <10W |
Dusk-to-dawn
Automatically as standard.
|
PC & aluminum | 10kg | 5 years Plus | 120m/s |
| Ambient Temperature | Battery | Autonomy | Available Options | |||
| -55℃~+70℃ | 12V 18AH | 100hrs |
Wireless remote control
GPS synchronization
NVG - compatible infrared (IR) LED
Mounting bracket
|
|||
Details for aviation warning light, airplane warning light:
Application of solar aviation lights:
1. Solar medium-intensity solar aviation obstruction light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and mostly come with the low intensity lights which are installed at lower place. It is a great aircraft warning light.
Company Overview：
Aokux is a professional manufacturer and exporter for green navigational aids products in China, such as aviation obstruction light, marine antern, helipad Lights etc. We have more than 10 years production-manufacturing experience, Aokux Strictly follow ISO 9001 standard, and most of our products meet ICAO and FAA standard. Aokux products have been exported over 65 countries and areas all over the world, and total annual revenue more than US$25 million.
Annual Production Capacity：
| Product Name |
Production Capacity |
Highest Ever |
unit Type |
| Obstruction light | 15000 | 17000 | Pcs |
| Marine lanterns |
26000 |
26500 |
pcs |
| Helipad light | 10000 | 10000 | pcs |
Delivery Time：
Small order mostly shipped by express, such as DHL, Fedex etc, delivery time 1-7 days.
Standard order delivery time 7-15 days. for more info, Please contact us.
Contact Us：
If you interest in our aircraft warning light, tower aviation light, aviation warning light, airplane warning light and
solar aviation lights, please feel free to contact us. here is the details contact info.
Tel: +86 18321162168
Email: info@aokux.com
Skype: xiangjia280
Wechat: Lighting8876
Whatsapp:+8618321162168
Web: www.aokux.com
Add: 6F 30# Hangzhou Bay New Economic Industrial Park Pinghu, 314201 Zhejiang, China
