The helicopter landing pad lights are strategically positioned to provide clear and visible guidance to pilots during the crucial phases of landing and takeoff. These lights are designed to offer high-intensity illumination, enabling pilots to accurately gauge the landing area and ensuring safe and precise maneuvers even in low-light conditions or adverse weather.
On the other hand, heliport perimeter lights mark the edges of the heliport, outlining the landing area and providing pilots with a clear visual boundary during approach and departure. This delineation is fundamental for defining the safe landing zone and ensuring the safe maneuvering of helicopters.
Both types of lights are designed to meet strict aviation standards and regulations, ensuring their reliability and performance in demanding operational conditions. Equipped with energy-efficient and long-lasting LED (light-emitting diode) technology, these lights minimize energy consumption and maintenance requirements, offering a cost-effective and sustainable lighting solution for heliports.
In conclusion, the helicopter landing pad lights and heliport perimeter lights are indispensable for enhancing the safety and functionality of heliports. Their role in providing clear visibility, defining landing areas, and meeting aviation standards makes them essential components for ensuring safe and efficient helicopter operations in various settings.
Overview:

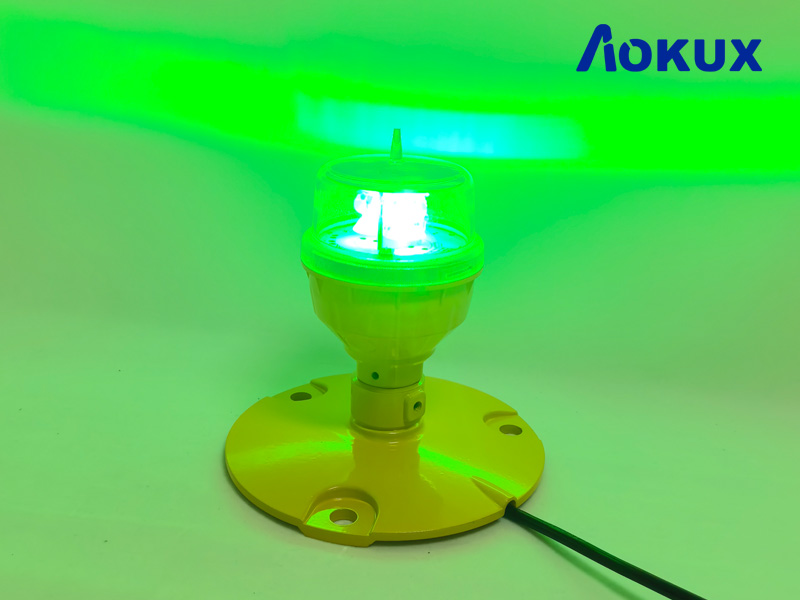

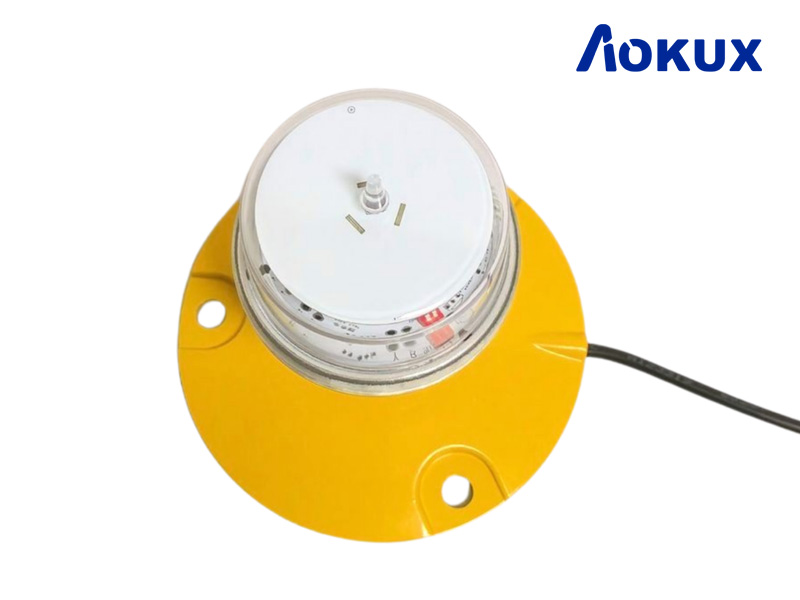

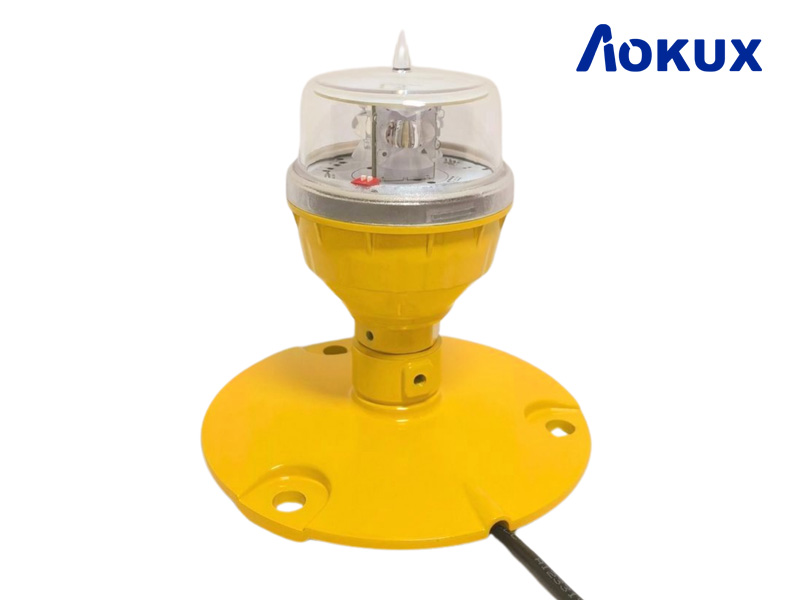

Helicopter landing pad lights heliport perimeter light for heliport lighting AO-HP-E1 , it has many kinds of applications, such as heliport perimeter light, Heliport TLOF, FATO Light, heliport approach landing light etc. It could be used as perimeter light of FATO(Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway light, runway light, flight path Lighting, etc. Our helideck lighting heliport Elevated light height not exceed 25cm. There is a fragile coupling in the base connection, so if aircraft hit the light by accident, the base will break immediately to avoid more damage.
Compliance:
1. ICAO Annex 14 Volume II Heliports 5.3.
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. Fragile coupling reduce the secondary damage to helicopters effectively.
Specification:
|
Product Name |
Helicopter landing pad lights heliport perimeter light for heliport lighting AO-HP-E1 |
|
Mode NO.: |
AO-HP-E1 |
|
Color: |
Green/yellow/white etc |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
>50cd |
|
Horizontal Output(degrees): |
360 degree |
|
Installation type: |
Elevated (surface installation) |
|
Flashing Characteristics:
|
Fixed light steady burning
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption <5W |
|
Circuit Protection: |
Integrated |
|
Helipad Light Material: |
lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
0.85kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. VHF pilot to ground remote control 2. Infra-Red (IR) light for NVG |

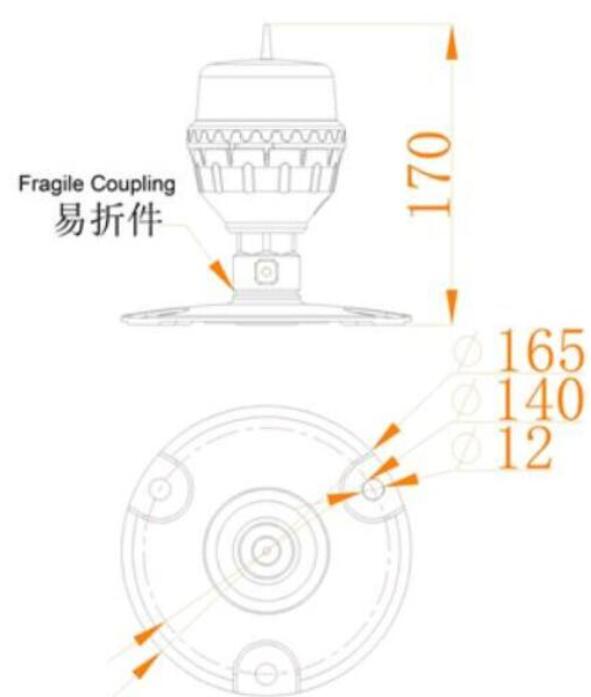

Dimension:
Applications:

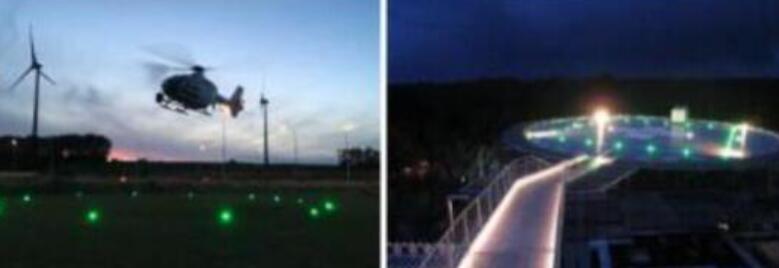

Helicopter landing pad lights heliport perimeter light for heliport lighting AO-HP-E1 has many applications for heliport lighting, sucha as Helipad FATO light, heliport TLOF areas Heliport FATO areas, Helipad Runway, Helipad taxiway, helideck perimeter light etc.
