Model AO-MI-C2 Medium-intensity Type C Aviation Obstruction Light emitting red color, designed for marking top of obstacle which height is between 45 to 105 meters.
Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector converging light to very small vertical divergence 3°make it totally compliance with ICAO standard.
Compliance:
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type C Obstruction Light
Features:
1. LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light.
2. Power supply available in DC(12-48V DC) or AC(110/240V AC).
3. Bird deterrent spike on top.
4. Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
5. UV protection Powder coated bright red color base make better visibility.
6. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection.
7. Built-in photocell for day/night operation(dusk to dawn operation).
8. Surge and lightning protection.
Specification:
Dimension:
Application:
1. AO-MI-C2 medium-intensity light red light could be used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is 45-105meter, and low intensity lights installed on lower place.
2. Medium-intensity type B light also use with Medium-intensity type A and high-intensity light when obstacle is more than 105m.
Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector converging light to very small vertical divergence 3°make it totally compliance with ICAO standard.
Compliance:
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type C Obstruction Light
Features:
1. LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light.
2. Power supply available in DC(12-48V DC) or AC(110/240V AC).
3. Bird deterrent spike on top.
4. Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
5. UV protection Powder coated bright red color base make better visibility.
6. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection.
7. Built-in photocell for day/night operation(dusk to dawn operation).
8. Surge and lightning protection.
Specification:
| Model NO.: | AO-MI-C2 |
| Light Source | LED |
|
Available Colors |
Red (Other color is optional) |
|
Light Intensity(cd) |
2000cd±25% |
|
Horizontal Output(degrees) |
360° |
|
Vertical Divergence(degrees) |
3° |
|
Flash Characteristics |
Steady burning(Fixed) |
|
Operation Mode |
Dusk-to-dawn Automatically as standard. |
|
Frequency |
50Hz,60Hz |
|
Operating Voltage |
DC(12-48V DC) or AC(110/240V AC) |
|
Power(W) |
<15W |
|
Circuit Protection |
Integrated |
|
Body Material |
Polycarbonate |
|
Base Material |
Die-casting aluminum |
|
Mounting |
190×190×θ12 |
|
Dimension(mm) |
229*229*168 |
|
Weight(kg) |
2.5kg |
|
Product Life |
5 years Plus |
|
Ambient Temperature(℃) |
-55℃~+70℃ |
|
Humidity |
0%-100% |
|
Wind Speed |
80m/s |
| IP grade | IP66 |
|
Available Options |
Bird deterrent spike Infrared LED compatible for NVG (Night Vision Goggles) Dry contact alarm output RS485 communication |

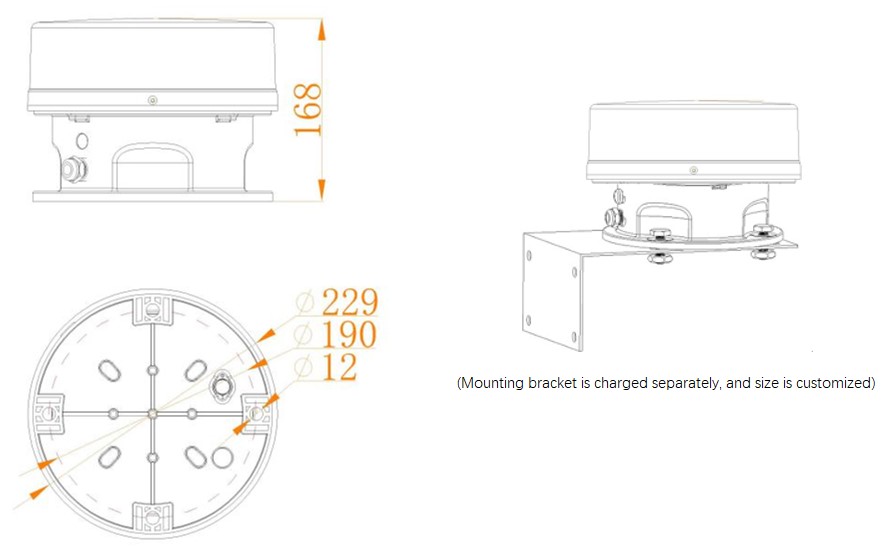

Dimension:
Application:
1. AO-MI-C2 medium-intensity light red light could be used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is 45-105meter, and low intensity lights installed on lower place.
2. Medium-intensity type B light also use with Medium-intensity type A and high-intensity light when obstacle is more than 105m.
